Compare practical options for circlip separation and feeding, including what each route needs, where it fits and what to check before you decide.

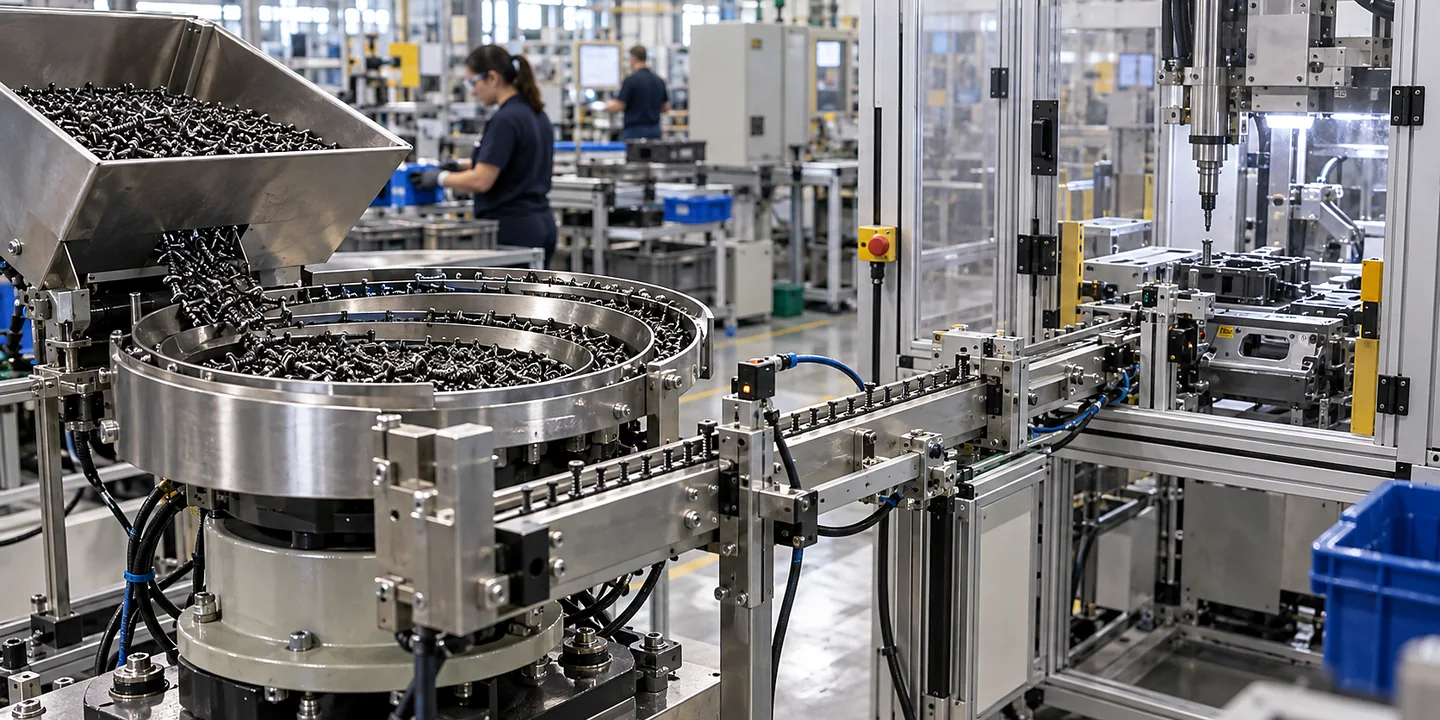

Photographs show general component feeding, including fasteners. Circlip separation must be trialled with the actual clip range, bulk condition and agreed distortion limits.
The right solution for circlip feeders is the simplest system that reliably handles your stated duty, line connections and expected exceptions.
Plan circlip feeders around real component variation, bulk condition, orientation, usable delivery rate and the downstream interface. Discuss representative part trials with Sorting Solutions.
Plan circlip feeders around real component variation, bulk condition, orientation, usable delivery rate and the downstream interface. Discuss representative part trials with Sorting Solutions. When you compare solutions, check how each option handles component geometry and variation for circlip separation & feeding, surface, fragility and entanglement behaviour and your surrounding line.
Discuss your application
Review component geometry and variation for circlip separation & feeding, surface, fragility and entanglement behaviour, and bulk condition and replenishment method using your samples, drawings and production observations.
Run focused trials for circlip feeders so you can see why an option is recommended or ruled out.
Resolve required orientation and delivery rate, escapement and downstream pick interface, controls, safety, operator access and maintenance before site work.
Check jam, damage and recovery acceptance checks in normal, difficult and fault conditions, then agree training and support for your team.
Typical support: sample assessment, feeding trials, orientation tooling, controls, escapement and line integration.
| Approach | Often suitable when | Watch for |
|---|---|---|
| Circlip Feeders | You need a dedicated solution for a clearly defined duty, product or part range and line interface. | Sample trials must include normal, marginal and supplier-variant components. |
| Flexible Vision-Guided Feeding for Suitable Variable Part Families | Representative trials show that the actual clip family can be separated and presented for the downstream pick in the required orientation and condition. | Include entangled pairs, overlapping clips and recovery checks; judge usable delivery and deformation against the agreed limits. |
| Manual or Tray Presentation where Bulk Feeding Would Damage Parts or Add Unjustified Complexity | Bulk handling cannot maintain the required clip condition, or the added complexity is not justified by the duty. | Check operator access, replenishment and the assembly interface, and compare acceptable delivery rather than nominal feeder output. |
